Product Features
● Potentiometer or Hall sensors.
● Single axis or dual axis.
● IP64.
● High strength and excellent proportional or switch output
● Easy to install, flexible operation, uniform texture, maintenance-free.
● High-intensity lever and excellent proportional control or switch output.
Application

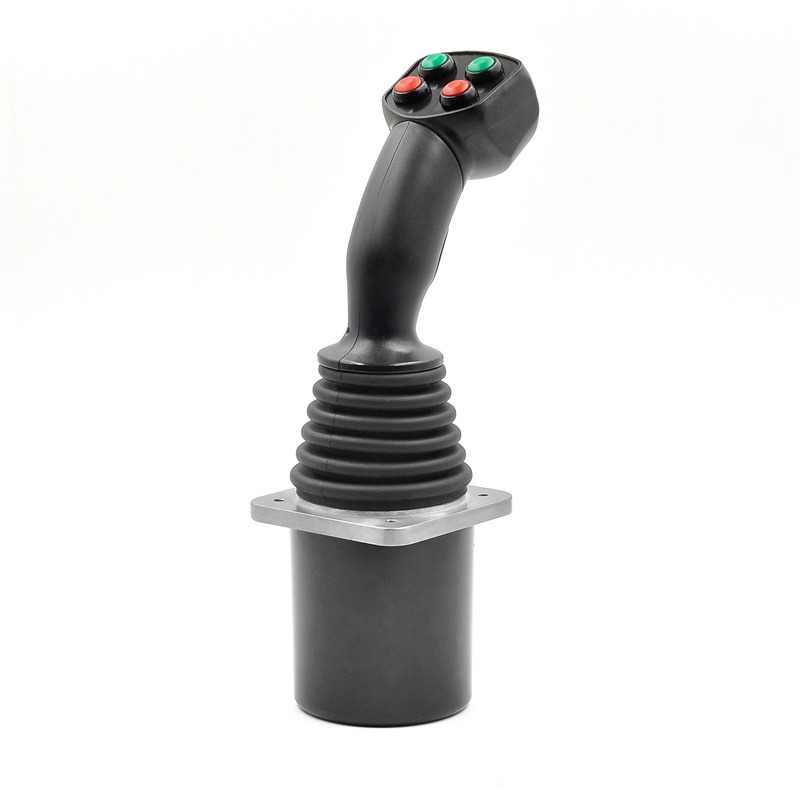

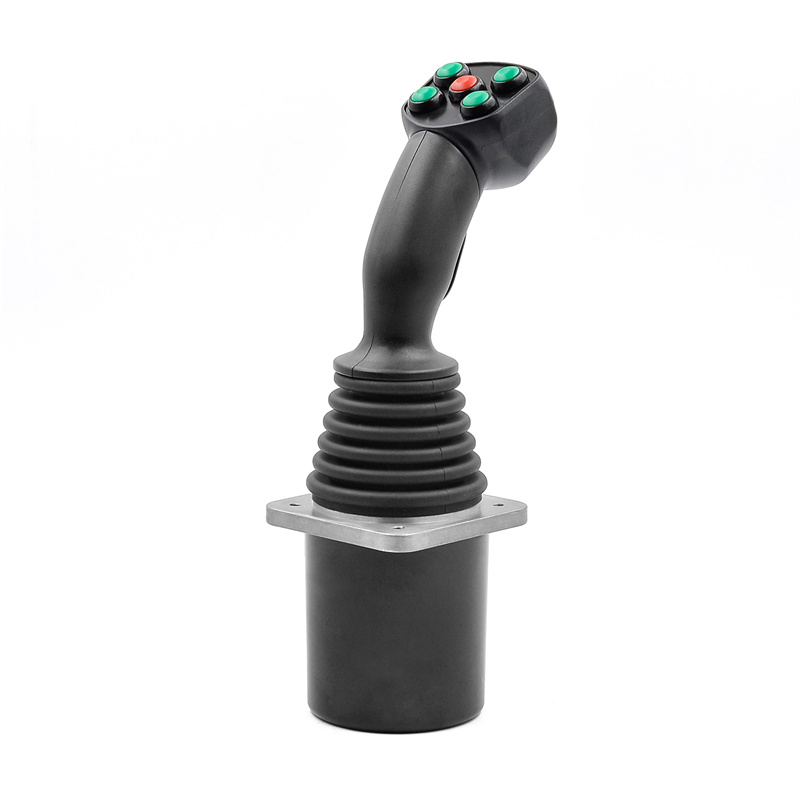

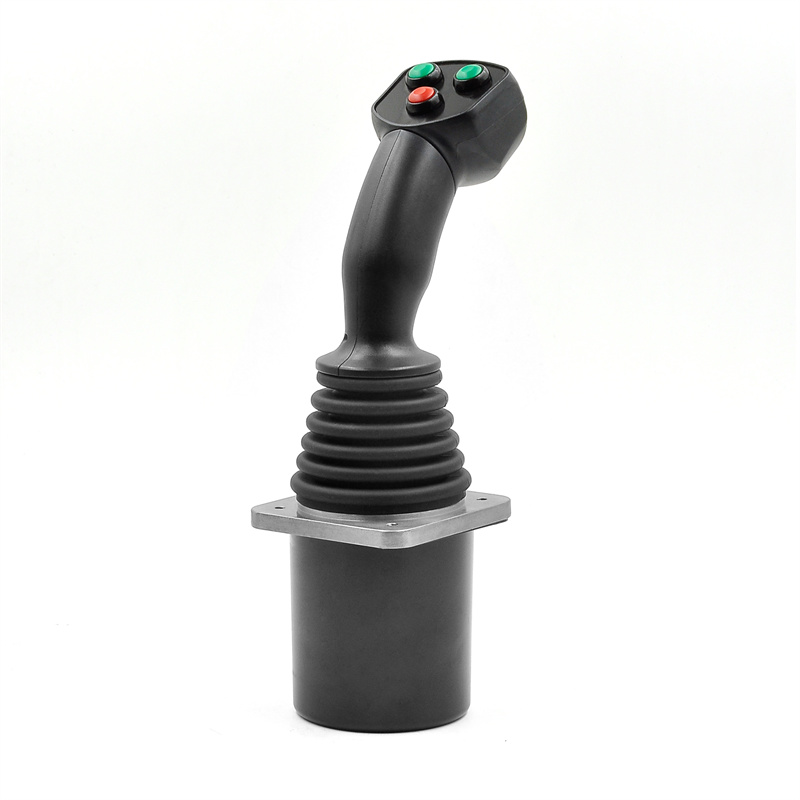

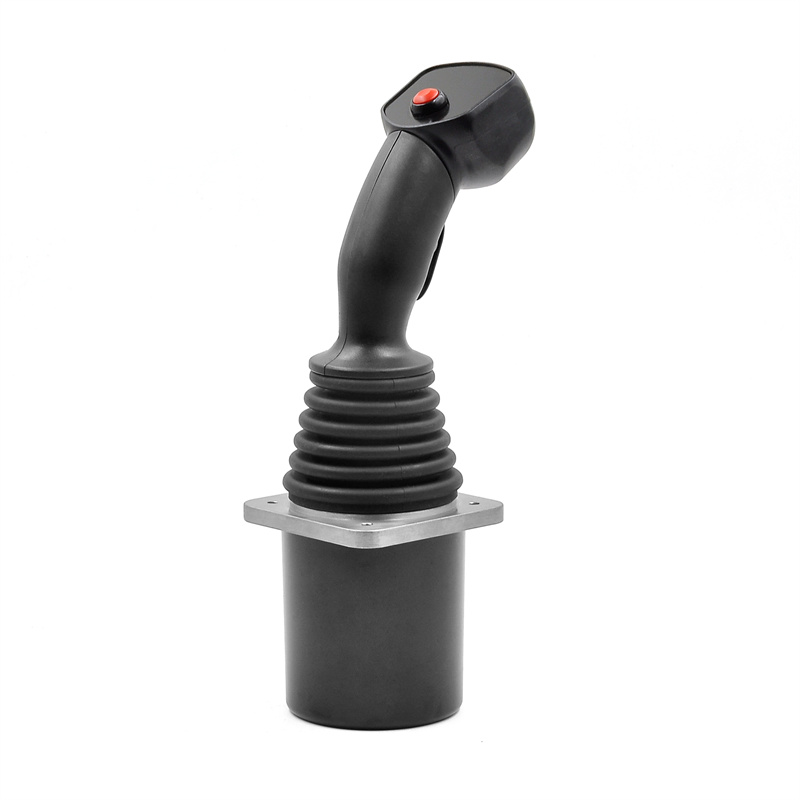

SJ01 industrial joystick, is mainly used in hydraulic promotional control or variable frequency motor control, such as construction machinery, rotary drilling, cranes, etc.
Storage temperature | -50℃～+80℃ |
Operating temperature | -40℃～+80℃ |
Protection grade | IP64 |
Vibration | Amplitude ±3g, frequency 10Hz-200Hz |
Shock | 20g, 6ms, Semi-sinusoidal |
EMC anti-interference rank | 100V/m, 30MHz-1GHZ, 80％Sine-wave modulation, meet EN 0082-2 (1995) standard |
EMC emission rank | Rank B, 150KHz to30MHz, meet EN 50081-2 (1993) standards |
ESD anti-interference grade | Rank 4, 8kv contact discharge, 15kv air discharge, meet IEC 61000-4-2 standards |

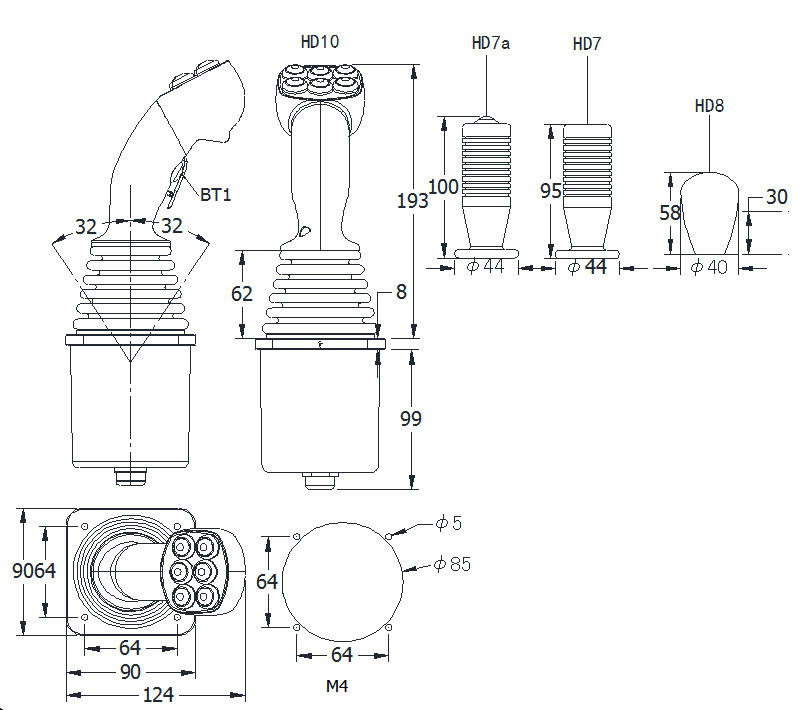

Mechanical angle | Potentiometer:±32°, Hall: ±20° |
Operating torque | 5N（50Nmax） |
Mechanical life | 5 million |
Mechanical error | ±0.5° |
Hall | Power supply voltage | 5±0.5VDC |
Power consumption of current | 6.5 mA/hall sensor | |
Resolution ratio | Infinite | |
Maximum voltage | 15 VDC | |
Reverse polarity maximum voltage | 14.5VDC | |
Load resistance | 5KΩ | |
Median voltage (no-load) | 48～52%Vs | |
Potentiomete | Power supply voltage | DC24V |
Power supply current | <20mA | |
Resolution ratio | Infinite | |
Resistance (10%) | 1KΩ,2KΩ,5KΩ,10KΩ,20 KΩ | |
Electrical angle | ±32° | |
Output voltage range (relative voltage) | 0～100%；10～90% | |
median voltage | 48%～52% | |
Potentiometer maximum load of voltage | 32VDC | |
Maximum power consumption (25 ℃) | 0.25W | |

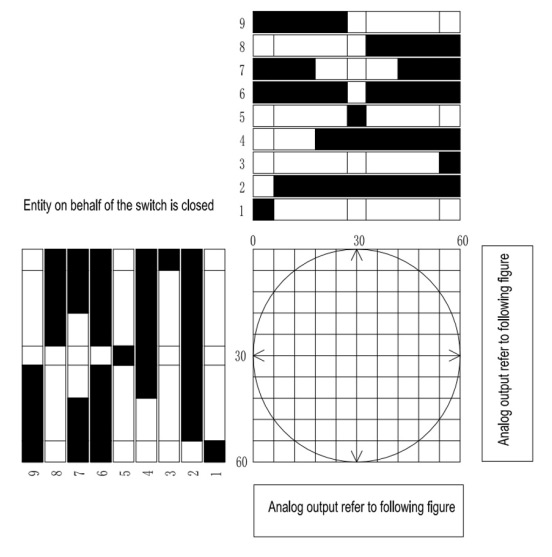

Switch direction | Switch position ±3° |
HuiRen Electronic is proud to be one of the leader of condustive plastic potentiometer , Industrial joystick.
