Product Features
● Advanced ergonomic design concept.
● The grip is comfortable and sturdy.
● IP65
Application
This series of products are mainly used in all kinds of lifting machinery, construction machinery, mining machinery. Can be assembled on not only the lower end operator, but also the pilot valve operating mechanism separately.

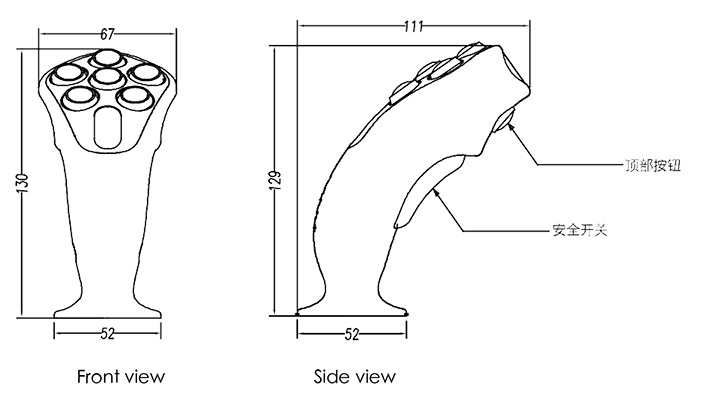

| The maximum height on the flange | 129mm |
| Maximum width of upper panel | 67mm |
| Number of buttons | 0 to 6 |
| Button operation mode | Self return or self locking |
| Button maximum operation | 5N |
| Button stroke | 2.5mm |
| Button mechanical life | Above 1,000,000 |
| Weight | 180g |
| Button electrical life | Above 200,000 |
| Button insulation resistance | ≥1000MΩ |
| Button load | 5A@28Vdc（Impedance load） |
| Operating temperature | -20℃〜～+55℃ |
| Storage temperature | -40℃〜～+85℃ |
| Protection level | IP65 |
| Model | SS - □□□ - □□□ |
| Model selectio n | ① ︱ ② ︱ ③ |
① SS

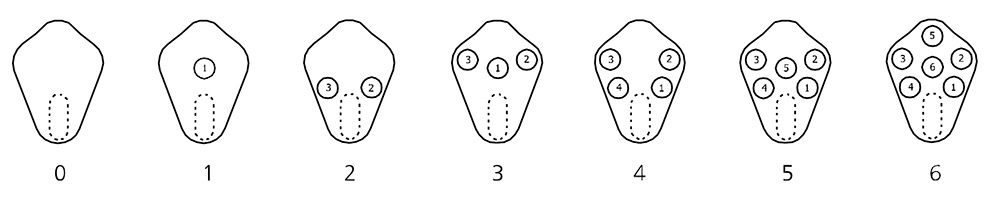

② Button numbers
③ Deadman switch and top switch
N= without deadman and top switch
D= with deadman switch, without top switch
B= With de
Note : The safety switch is an independent button switch that is not shared with other buttons on the commonend .

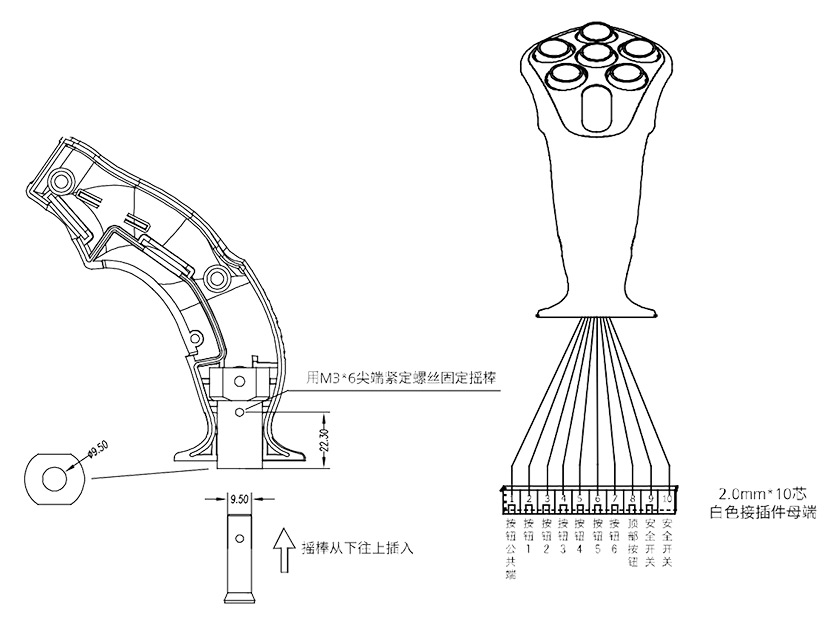

| Color | No. | features |
| Black | 1 | Button switch common terminal |
| Red | 2 | Button 1 |
| Yellow | 3 | Button 2 |
| Green | 4 | Button 3 |
| Blue | 5 | Button 4 |
| Purple | 6 | Button 5 |
| Gray | 7 | Button 6 |
| White | 8 | Top switch |
| Pink | 9 | Deadman switch |
| Pink | 10 | Deadman switch |
