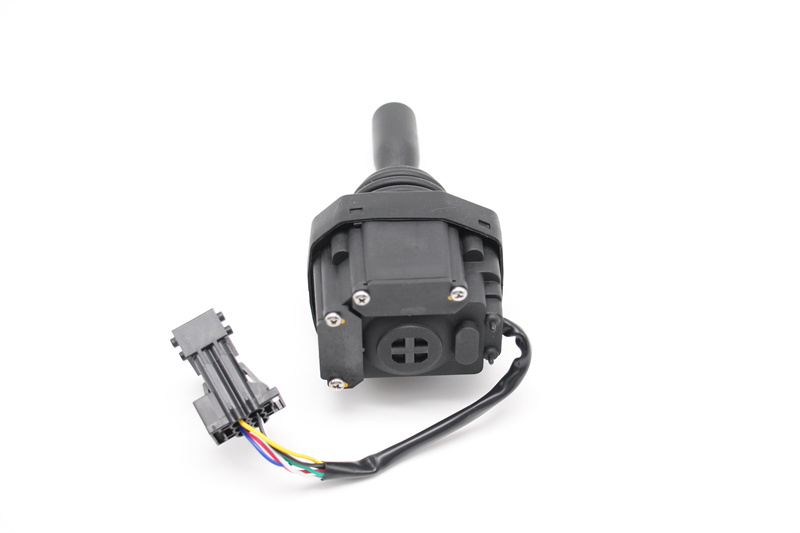

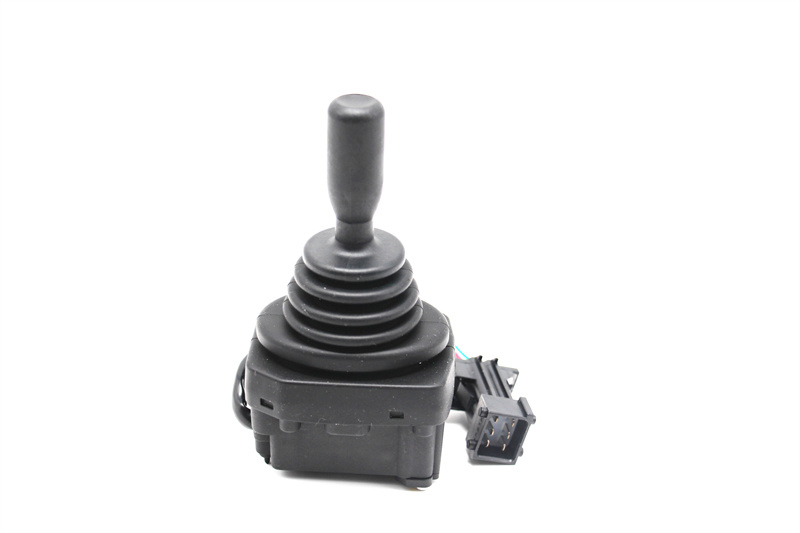

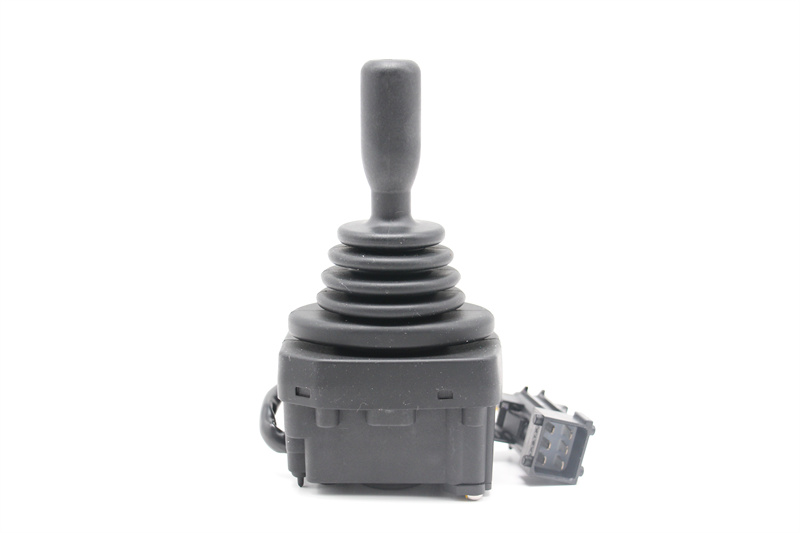

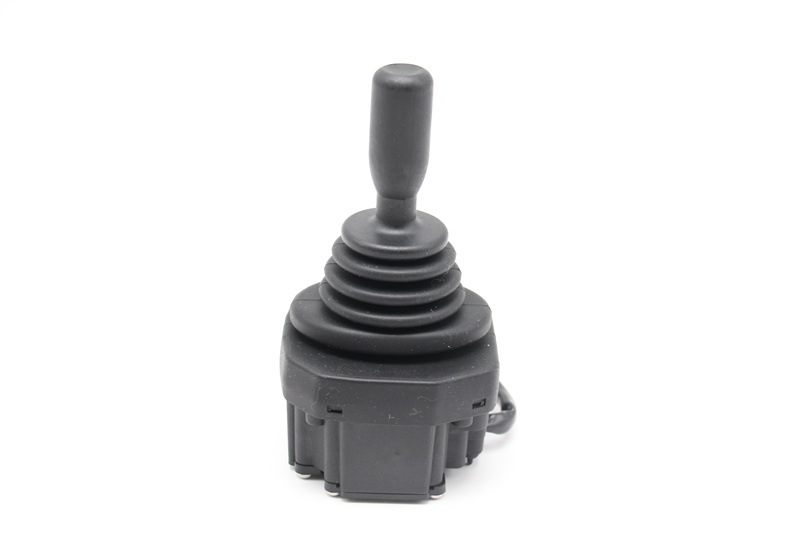

7919040093&095

Product Features

● Spring return, dual axis for any direction or cross direction

● Hall or Potentiometer available

● Comfortable operating

Application

Used on forklift truck and other engineering vehicles, especially for Linde forklift.


Technical Information

Mechanical features

Travel angle±30º
Operating typeSpring return
Breakout force9N
Maximum allowable force> 300N
Expecting life>3 millin times (Hal)
Weight200g/260g




Environmental data


Operating Temperature-30℃~+70℃
Storage Temperature-40℃~+85℃
Protection levelIP65 (Above the flange)
