Character

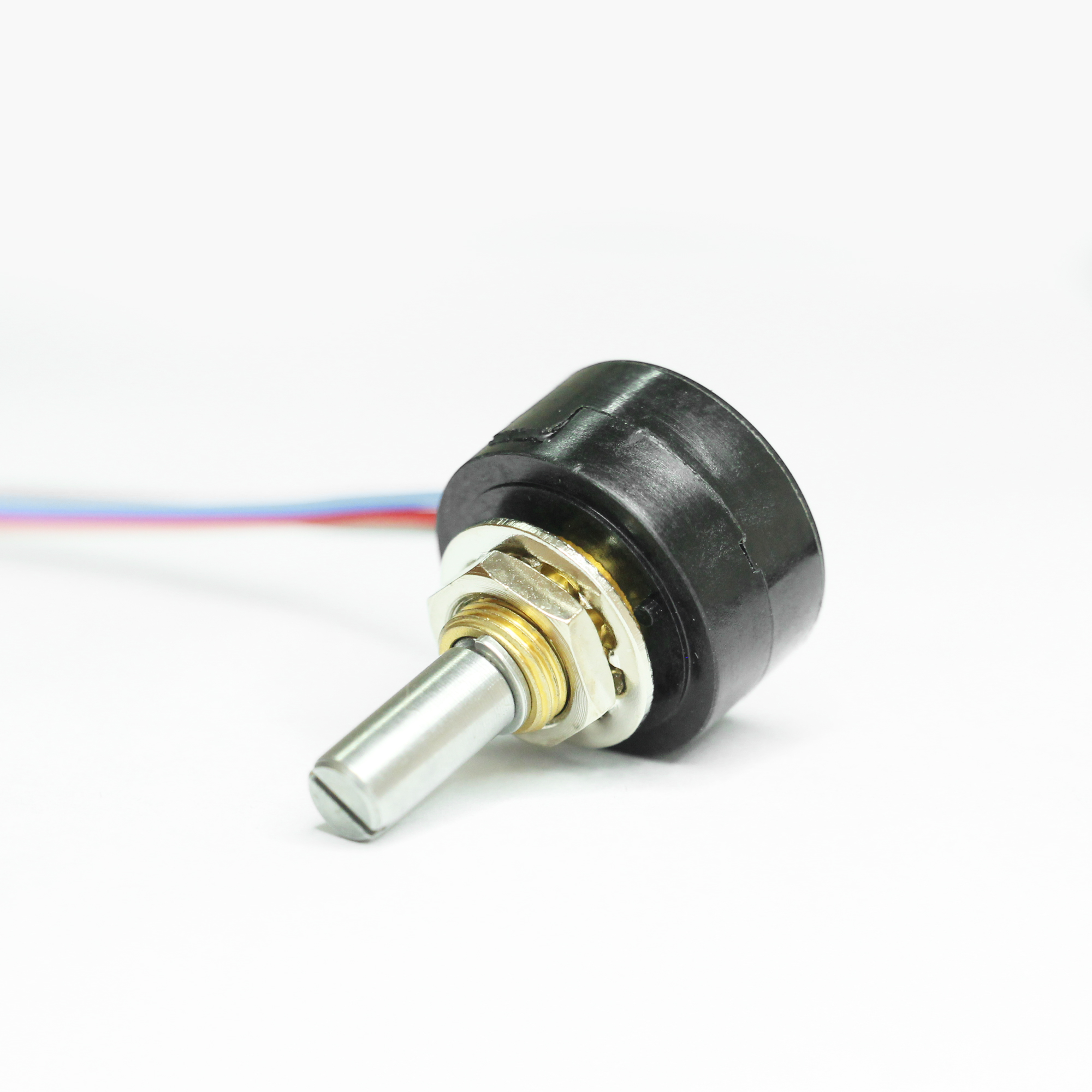

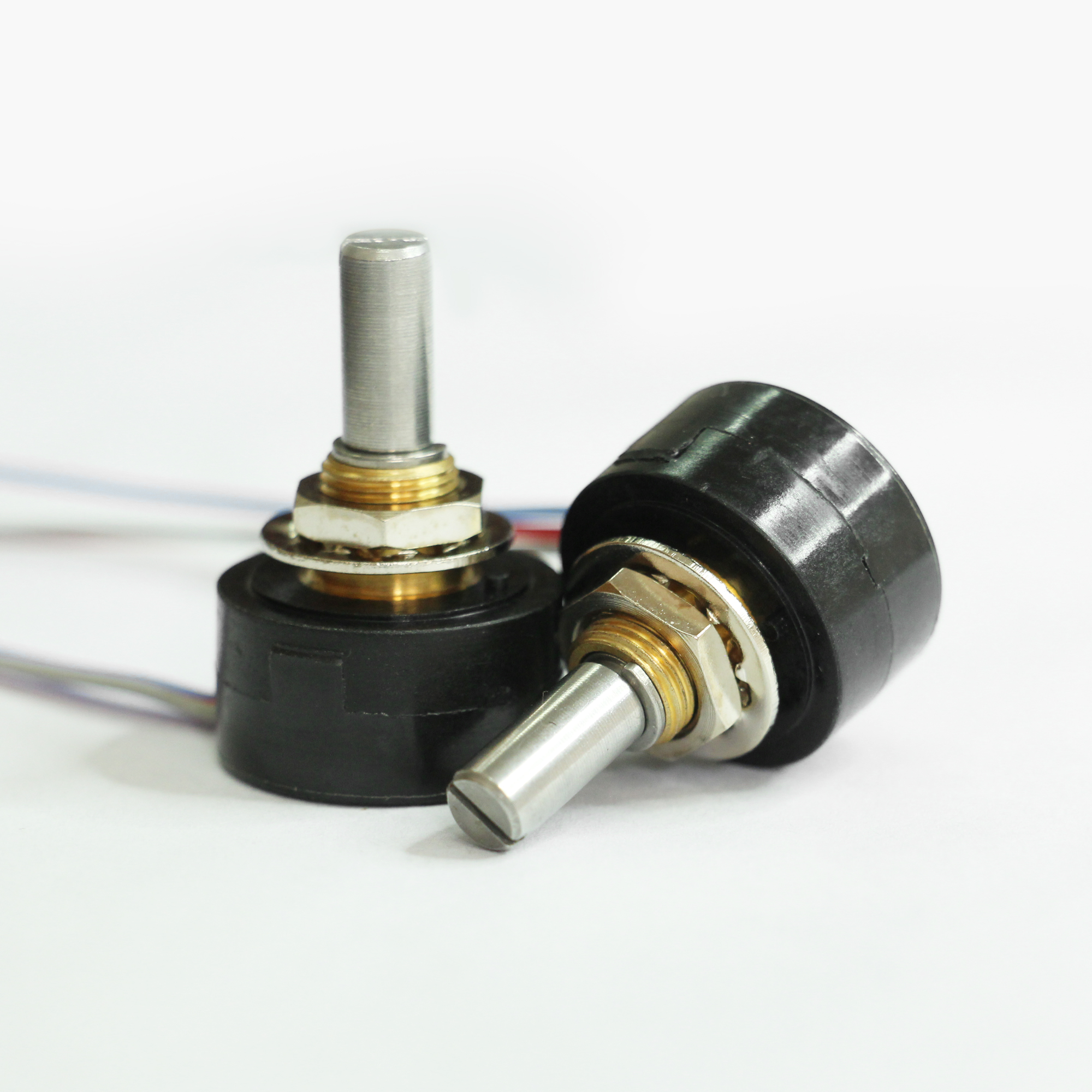

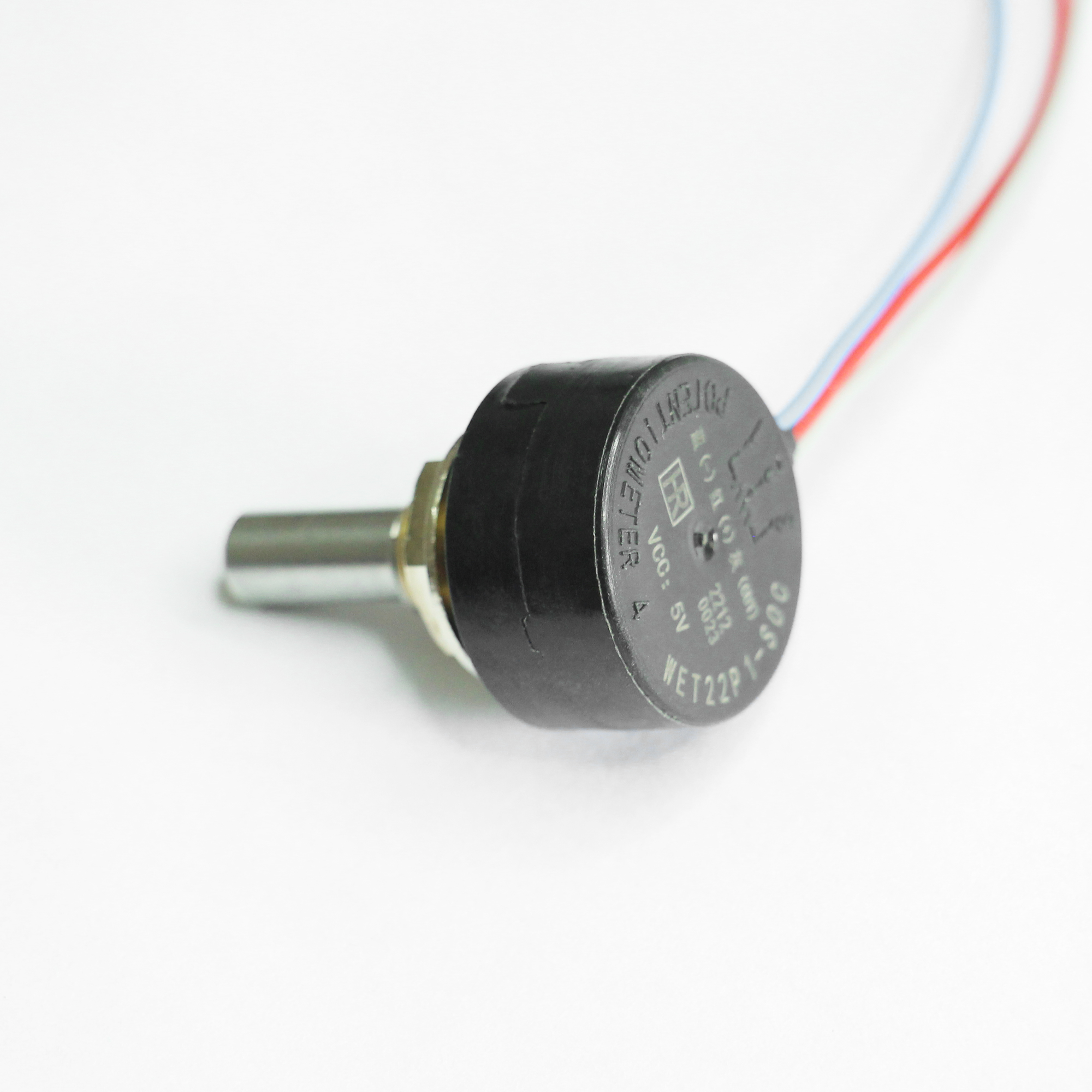

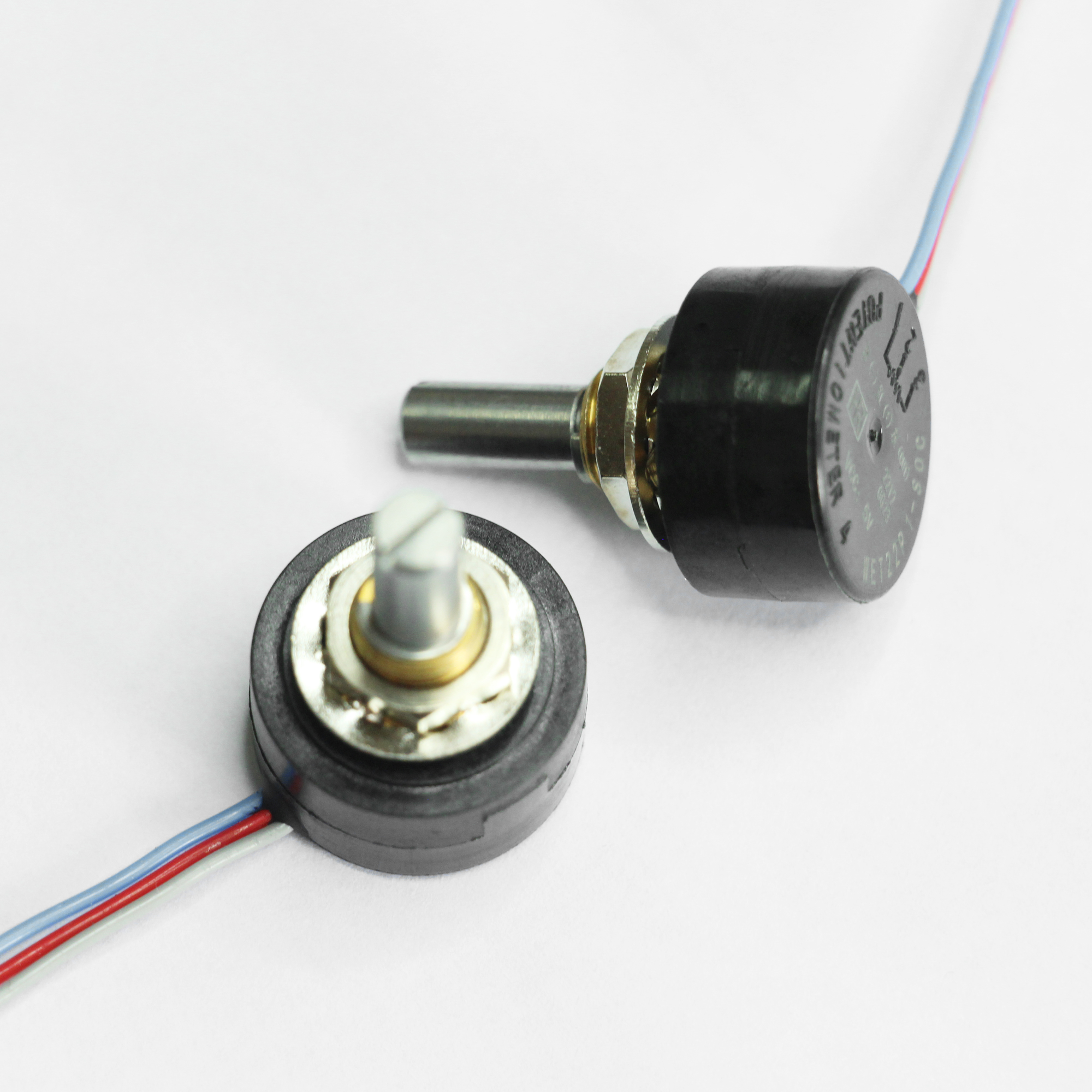

● Non-contact digital potentiometer
● High precision, long life
● Any electrical Angle choice, customized for you
● Small dynamic noise
● Any electrical Angle choice, customized for you
| Outgoing terminal name | Exit connection |
| Red（+） | Power +: 5VDC |
| Blue（-） | Power -: 0VDC |
| Gray（OUT） | Voltage output terminal:0-5VDC |
Mechanical Travel | 360°（endless） | Life Expectancy | Theoretical infinite |
| Operating Temperature | -40℃~+125℃ | Rotational speed RS | <30000RPM |
Storage temperature | -40℃~+125℃ | Shell | PPO |
Running torque | <5mN·m | Shaft | Stainless iron |
Electrical Travel | 316° |
Independent Linearity | ±0.3% |
Resolution | 4096（12 bits） |
Operating voltage | 5VDC |
| Output signal | 0-5VDC |
Max operating current | <10mA |
Initial terminal utput deviation | <10mV |
| Load resistance | >5KΩ |
Electrical part | Output range | Standard output 0~100% (customizable) Theoretical infinite | |
Output direction | The standard is clockwise signal output, but it can also be set to counterclockwise signal output | ||
| Other output | Current such as :4~20mA output, PWM output... | ||
| modes | |||
Special shaft | Special shaft length, special shaft diameter, or special machining on the shaft can be done according to customer requirements | ||
