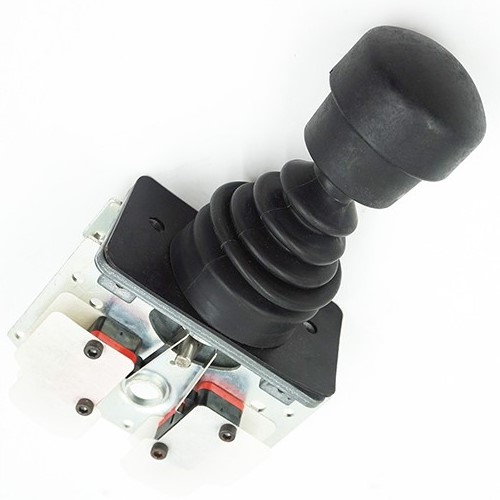

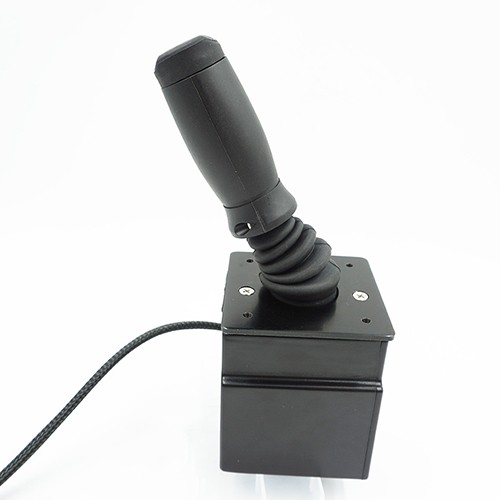

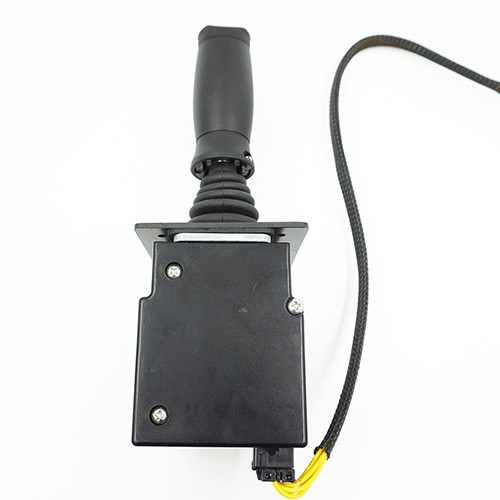

Single-axis hand operated joystick
Product Features

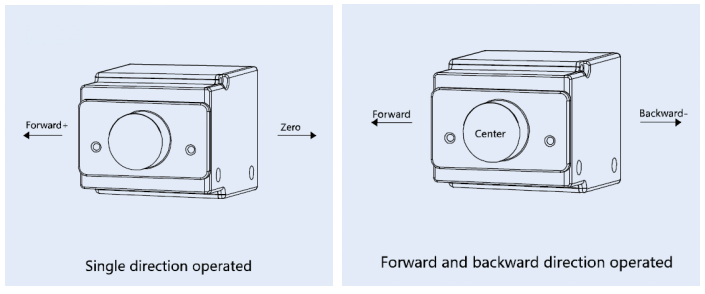

● Single-axis forward and backward directional or single directional operated
● Friction lock or spring return, Center and start (end) position mechanical lock optional
● Hall effect or potentiometer angle detection optional
● Microswitch optional (maximum 10A@30Vdc)
● Various handle optional
Application
Typical application on various electro-hydraulic control system of engineering vehicles and other electrical control system
Travel angle | ±37.5º or 75°(single direction) |
Operating type | Spring return or firction |
Breakout force | 8N (spring) 16N (friction) |
Operating force(max) | 18N (spring) 16N (friction) |
Maximum allowable force | >300N |
Expecting life | >2 million cycles(potentiometer) |
>5million cycles (hall effect) | |
Weight | 500g (without handle) |
Potentiometer | |
Power supply | <36Vdc |
resistance | 10KΩ (±10%) |
Center angle | ±3º |
Maximum dissipation | 0.2W |
Hall effect | |
Power supply | 5.0±0.5Vdc |
Supply current (nominal power supply) | <11mA |
Maximum allowable overload voltage | 20Vdc |
Reverse maximum allowance voltage | -10Vdc |
Output linearity tolerance | <±0.2V |
With electronic amplifier | |
Power supply | 9~18Vdc (U11~U15) |
18~36Vdc (U21~U25) | |
9~36Vdc (I21-I22) | |
Power current consumption | <20mA |
Maximum output current | 10mA (Standard power supply) |
Microswitch | |
Load capacity | 10A@30Vdc (Resistive load) |
Expecting life | 30 million times (Mechanical) |
100 thousand times (Electrical) | |
Insulation resistance | >100MΩ (500Vdc Insulating-resistance meter) |
Breakout angle | ±5° |
Operating Temperature | -30℃~+70℃ |
Storage Temperature | -40℃~+85℃ |
Protection level | IP65 (Above the flange) |
type | SJ20 - □□ - □□ - □□ - □□ - □□ - □□ |
Code | ① - ② - ③ - ④ - ⑤ - ⑥ - ⑦ |
1. Product type

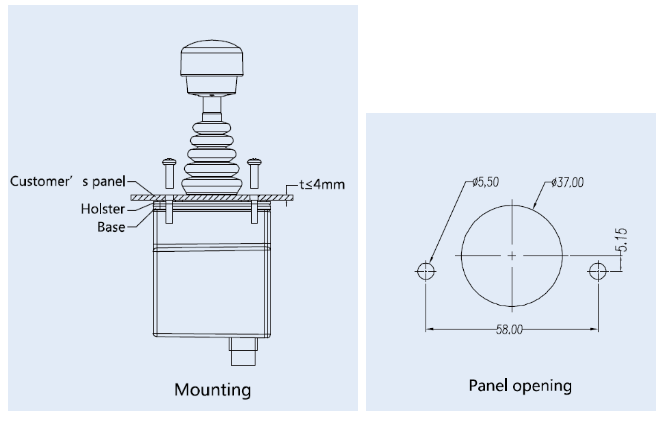

SJ20 series joystick, single-axis friction lock or spring return, installation dimension58mm
2. Operating type
FCF | Friction, center detent |
FEF | Friction, start (or end )detent |
FCL | Friction, center mechanical lock |
FEL | Friction, start (or end) mechanical lock |
SC0 | Spring return, back center position |
SCL | Spring return, back center ,center with mechanical lock |
SE0 | Spring return, back start position |
SEL | Spring return, back start position ,start(or end) with mechanical lock |
Notice:Mechanical lock is only used in BG handles.
3. Output signal
P101 | Potentiometer, less than 36Vdc power supply, with 10KΩ center-tapped potentiometer |
H51 | Hall effect,5Vdcpower supply, 0.5~2.5~4.5V output voltage |
H52 | Hall effect,5Vdcpower supply, 0~2.5~5.0V output voltage |
H53 | Hall effect,5Vdc power supply, 1.25~2.5~3.75V output voltage |
U11 | With electronic amplifier,9~18Vdc power supply, -10V~0V~+10V output voltage |
U12 | With electronic amplifier,9~18Vdc power supply, +10V~0V~+10V output voltage |
U13 | With electronic amplifier,9~18Vdc power supply, -5V~0V~+5V output voltage |
U14 | With electronic amplifier,9~18Vdc power supply, +5V~0V~+5V output voltage |
U15 | With electronic amplifier,9~18Vdc power supply, 0~+10V output voltage |
U21 | With electronic amplifier,18~36Vdcpower supply, -10V~0V~+10V output voltage |
U22 | With electronic amplifier,18~36Vdc power supply, +10V~0V~+10V output voltage |
U23 | With electronic amplifier,18~36Vdcpower supply, -5V~0V~+5V output voltage |
U24 | With electronic amplifier, 18-36Vdc power supply, +5V~0V~+5V output voltage |
U25 | With electronic amplifier,18-36Vdc power supply, 0~+10V output voltage |
U26 | With electronic amplifier,18-36Vdc power supply, 6V~12V~+18V output voltage |
I21 | With electronic amplifier,9-36Vdc power supply, 2-wire system 4mA~12mA~20mA output current |
I22 | With electronic amplifier,9-36Vdc power supply, 2-wire system 20mA~4mA~20mA output current |
NA | Without analog output |
4. Microswitch
MS00 | Without microswitch |
MS21 | With 10A start position microswitch |
MS22 | With 10A forward and backward directional microswitch |
MS23 | With 10A center(N.C.) and forward and backward directional microswitch |

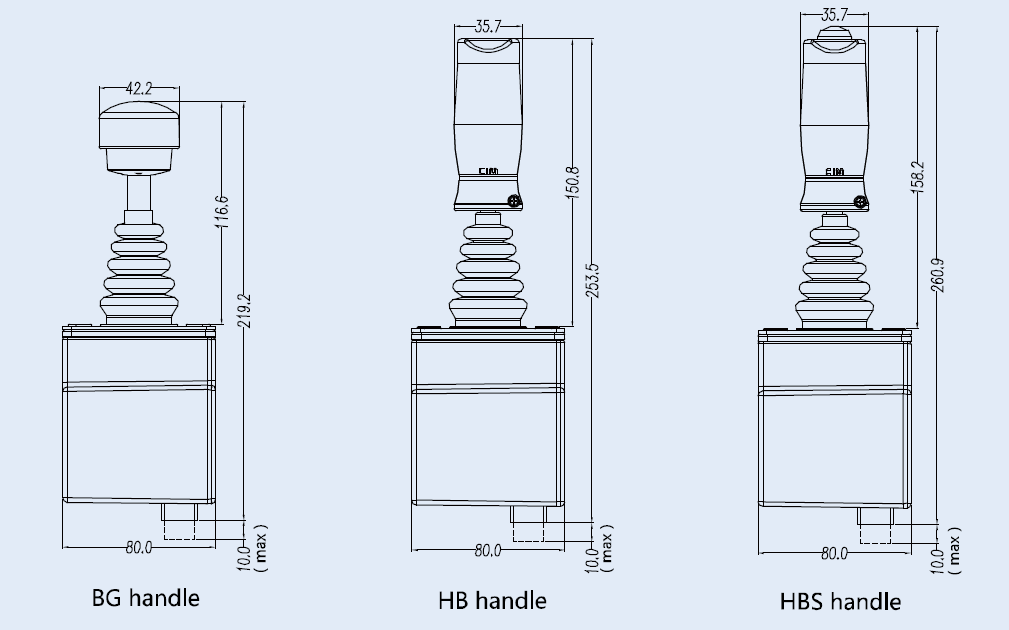

5. Handle
BG | BG type handle,handle operate |
HB | HB type handle,top without button |
HBS | HBS type handle,top with button |

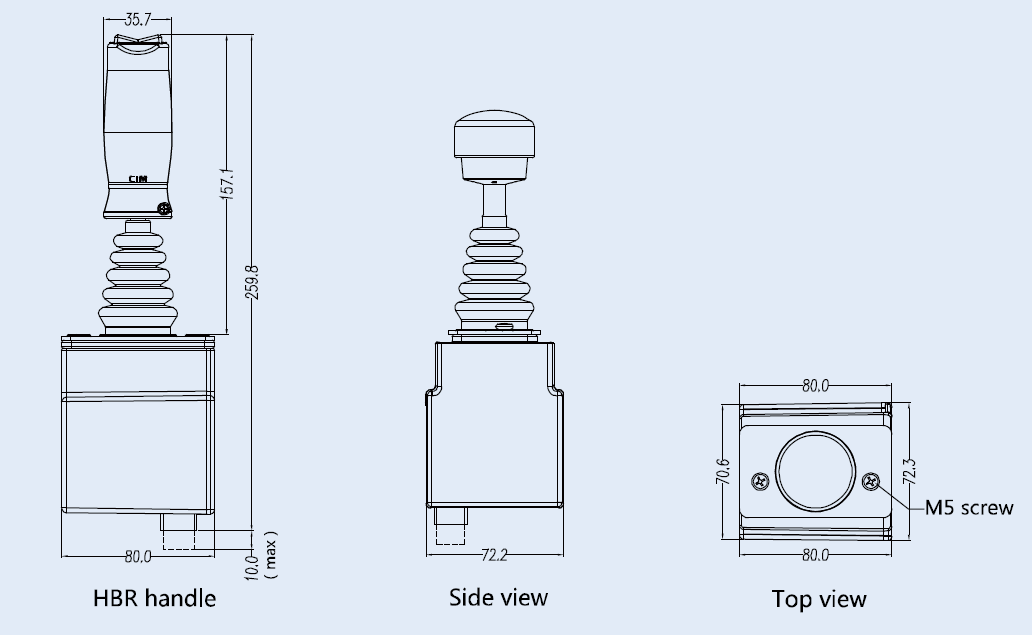

HBR | HBR type handle,top with rocker switch |
6. Connection
L | Wire output (without housing) |
A | AMP connector |

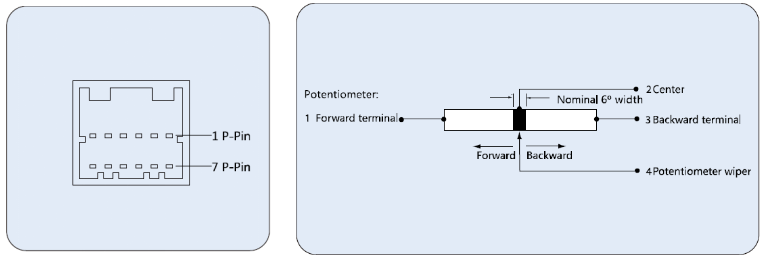

Pin | Potentiometer | Hall effect |
1 | Potentiometer forward terminal | +5V |
2 | Potentiometer center tap | N/A |
Single direction(N/A) | ||
3 | Potentiometer backward terminal | 0V |
4 | Potentiometer wiper | Output |
5 | Directional switch forward (N.O.) | Directional switch forward (N.O.) |
Start position switch of single direction (N.O.) | Start position switch of single direction (N.O.) | |
6 | Forward directional switch common terminal | Forward directional switch common terminal |
Common terminal of start position | Common terminal of start position | |
7 | Directional switch back ward (N.O.) | Directional switch back ward (N.O.) |
Single direction (N/A) | Single direction (N/A) | |
8 | Backward directional common terminal | Backward directional common terminal |
Single direction (N/A) | Single direction (N/A) | |
9 | Rocker left directional (N.O.) | Rocker left directional (N.O.) |
10 | Handle of top switch common terminal | Handle of top switch common terminal |
11 | Rocker right directional (N.O.) | Rocker right directional (N.O.) |
12 | Deadman switch | Deadman switch |
pin | With electrical amplifier of output voltage | With electrical amplifier of output current |
1 | Power supply | |
2 | GND | |
3 | Output positive(+) | N/A |
4 | Output negative(-) | N/A |
5 | Directional switch forward (N.O.) | Directional switch forward (N.O.) |
Start position switch of single direction (N.O.) | Start position switch of single direction (N.O.) | |
6 | Forward directional switch common terminal | Forward directional switch common terminal |
Common terminal of start position | Common terminal of start position | |
7 | Directional switch backward (N.O.) | Directional switch backward (N.O.) |
Single direction (N/A) | Single direction (N/A) | |
8 | Backward directional common terminal | Backward directional common terminal |
Single direction (N/A) | Single direction (N/A) | |
9 | Rocker left directional (N.O.) | Rocker left directional (N.O.) |
10 | Handle of top switch common terminal | Handle of top switch common terminal |
11 | Rocker right directional (N.O.) | Rocker right directional (N.O.) |
12 | Deadman switch | Deadman switch |
