CXWY-TF

Product Features

● Precision linearity

● Long mechanical life

● High resolution

● Small dynamic noise

● Convenient and reliable installation

Specification


TF seriesmm5075100110125130150175200225250275300325350360375400425450475500
Total electric travel (T.E)mm5580105115130135155180205230255280305330355365380405430455480505
Available electric travel(A.E)mm5075100110125130150175200225250275300325350360375400425450475500
Resistance tolerance± 20%5.0
Independent linear degree±%0.05
Mechanical travel(M.T)mm5782107117132137157182207232257282307332357367382407432457482507
Output range
voltage divider
Image resolution
infinite
Use environment-50~+120
Size Amm199224249259274279299324349374399424449474499509524549574599624649



TF seriesmm5255506006507007508008509009501000115012501500160018002000225023002500
Total electric travel (T.E)mm5305556056557057558058559059551005115512551505160518052005225523052505
Available electric travel(A.E)mm5255506006507007508008509009501000115012501500160018002000225023002500
Resistance tolerance+20%51020
Independent linear degree±%0.05
Mechanical travel(M.T)mm5325576076577077578078579079571007115712571507160718072007225723072507
Output range
voltage divider
Image resolution
infinite
Use environment-50~+120
Size Amm674699749799849899949999104910991149129913991649174919492149239924492649

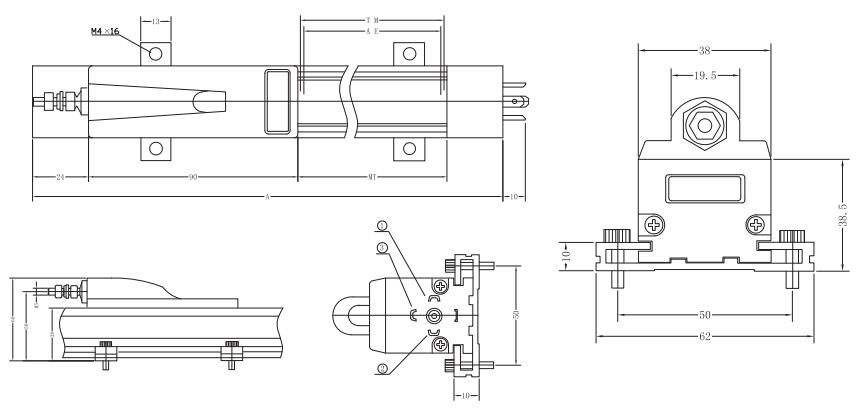

Installation Size
