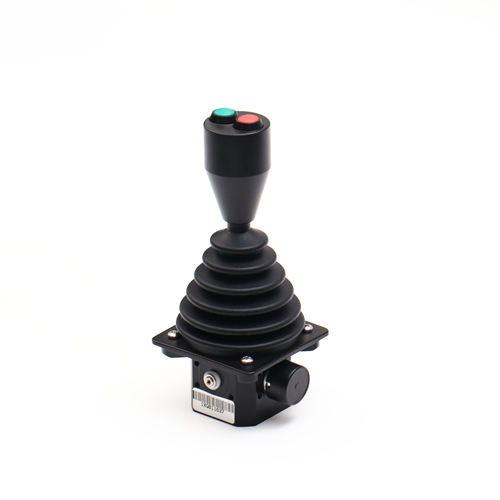

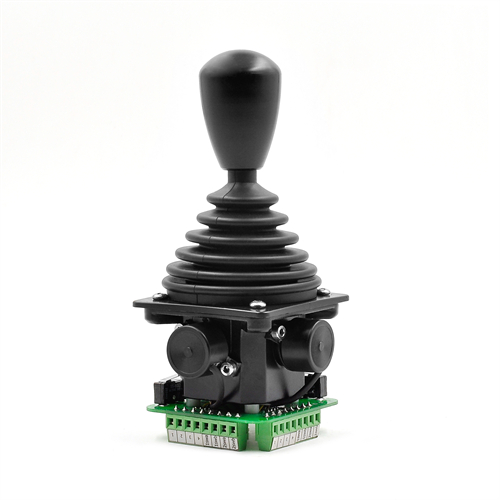

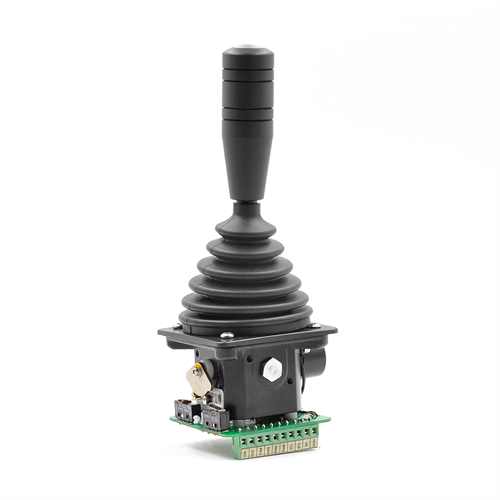

SJ100

Product Features

● Potentiometer or Hall sensors.

● Single axis or dual axis.

● IP64.

● Easy to install, flexible operation, uniform texture, maintenance-free.

● High-intensity lever and excellent proportional control or switch output.

Application

SJ100 industrial joystick, is mainly used in hydraulic promotional control or variable frequency motor control, such as Rotary Table (drilling rig), Aerial Fire Truck, Crane, Shield Tunneling Machine, Oil Hoist, etc.

Technical Information

Environment Parameter

Storage temperature

-50℃~+80℃

Operating temperature

-40℃~+80℃

Protection grade

IP64

Vibration

Amplitude ±3g, frequency 10Hz-200Hz

Shock

20g, 6ms, Semi-sinusoidal

EMC anti-interference rank

100V/m, 30MHz-1GHZ, 80%Sine-wave modulation, meet EN 0082-2 (1995) standard

EMC emission rank

Rank B, 150KHz to30MHz, meet EN 50081-2 (1993) standards

ESD anti-interference grade

Rank 4, 8kv contact discharge, 15kv air discharge, meet IEC 61000-4-2 standards

Mechanical Parameter

Mechanical angle

Potentiometer:±32°, Hall: ±20°

Operating torque

5N(50Nmax)

Mechanical life

5 million

Mechanical error

±0.5°

Electrical Parameters

Hall

Power supply voltage

5±0.5VDC

Power consumption of current

6.5 mA/hall sensor

Resolution ratio

Infinite

Maximum voltage

15 VDC

Reverse polarity maximum voltage

14.5VDC

Load resistance

5KΩ

Median voltage (no-load)

48~52%Vs

Potentiometer

Power supply voltage

DC24V
Power supply current

<20mA

Resolution ratio

Infinite

Resistance (10%)

1KΩ,2KΩ,5KΩ,10KΩ,20 KΩ

Electrical angle

±32°

Output voltage range (relative voltage)

0~100%;10~90%

median voltage

48%~52%

Potentiometer maximum load of voltage

32VDC

Maximum power consumption (25 ℃)

0.25W

Switch direction

Switch position ±3°

PRODUCT CONFIGURATION

Common closed position

PRODUCT INSTALLATION
