Product Features
● Advanced ergonomic design concept.
● The grip is comfortable and sturdy.
● IP65
Application
This series of products are mainly used in all kinds of lifting machinery, construction machinery, mining machinery. Can be assembled on not only the lower end operator, but also the pilot valve operating mechanism separately.

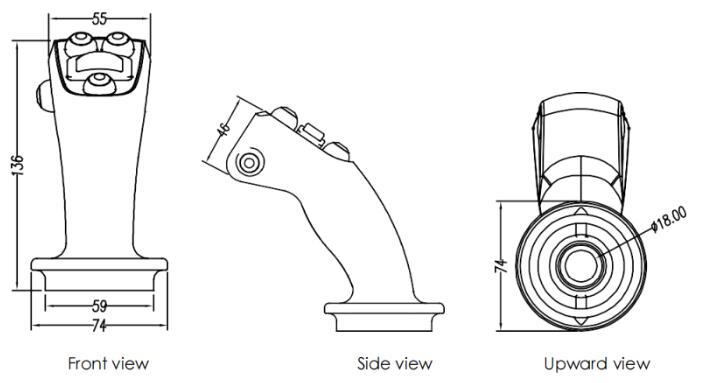

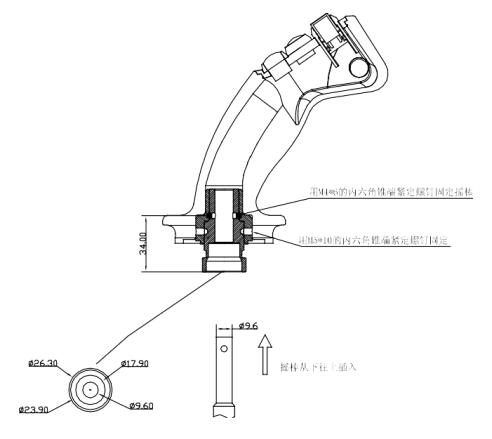

| The maximum height on the flange | 140mm |
| Maximum width of upper panel | 55mm |
| Number of buttons | 0 to 5 |
| Number of finger wheel switches | 0 to 2 |
| Finger wheel switch angle | ±42º |
| Button operation mode | Self return or self locking |
| Button maximum operation | 5N |
| Button stroke | 2.5mm |
| Button mechanical life | Above 1,000,000 |
| Weight | 240g |
| Button electrical life | Above 200,000 |
| Button insulation resistance | ≥1000MΩ |
| Button load | 5A@28Vdc（Impedance load） |
| Operating temperature | -20℃〜～+55℃ |
| Storage temperature | -40℃〜～+85℃ |
| Protection level | IP65 |
| Model | SP - □□□ - □□□ - □□□ |
| Model selectio n | ① ︱ ② ︱ ③︱ ④ |
① SP
② Button numbers
There are total five buttons, and the button location is shown below.：
③ Finger wheel switch

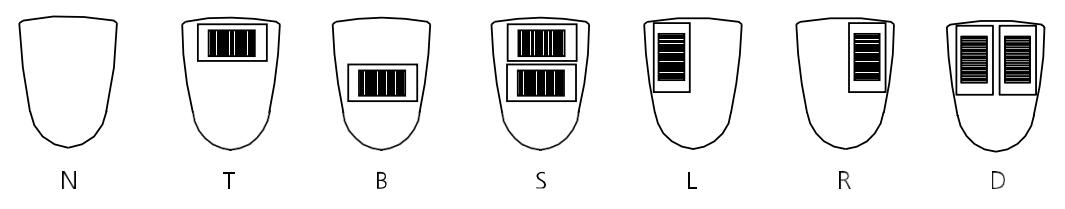

It is according to customers’ requirements. For example, SP - 3 - B, see below
④ Deadman switch
N= without deadman switch
L= Left deadman switch
R= Right deadman switch
| Color | No. | features |
| Red | 1 | +5V DC |
| Black | 2 | 0V |
| Yellow | 3 | Finger wheel switch output voltage |
| Green | 4 | Button switch common terminal |
| Brown | 5 | Button 1 |
| White | 6 | Button 2 |
| Blue | 7 | Button 3 |
| Purple | 8 | Button 4 |
| Cyan | 9 | Button 5 |
| Gray | 10 | Deadman switch |
