Product Features
● Thumb operation
● Spring return
● Two axis
● Uncontact hall effectt
● Apply to various grip
● Switching output is optional.
Application
Mainly used in various operating joystick, operating panels, and miniature remote control.
| Travel angle | ±25º |
| Operating type | Spring return |
| Breakout force | 2N |
| Operating force（max） | 5N |
| Maximum allowable force | 约 100N |
| Expecting life | >1 million cycles |
| Weight | 18g |
| Power supply | 5.0±0.5Vdc |
| Electrical angle | ±25° |
| Supply current (max) | 10mA |
| Center tap output voltage | 2.5±0.1V |
| Reverse maximum alowable voltage | -10Vdc |
| Output linearity tolerance | <±0.2V |
| Maximum alowable overload voltage | 35Vdc |
| Operating Temperature | -30℃～+70℃ |
| Storage Temperature | -40℃～+85℃ |
| Protection level | IP67 (Only for electronic part) |

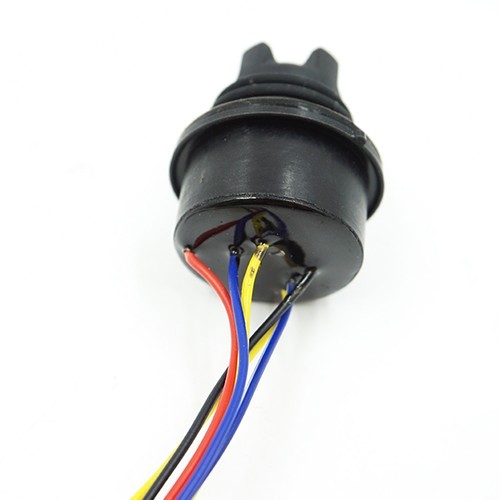

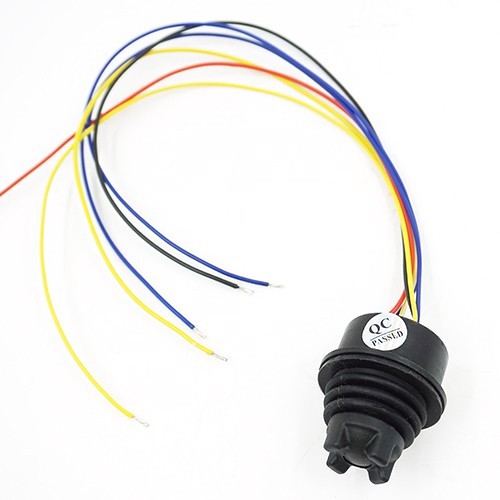

| Color | Function |
| Black | GND |
| Red | VCC |
| Yellow | X1out |
| Blue | Y1out |
| Yellow/White | X2out |
| Blue/White | Y2out |
HuiRen Electronic is proud to be one of the leader of condustive plastic potentiometer , Industrial joystick.
