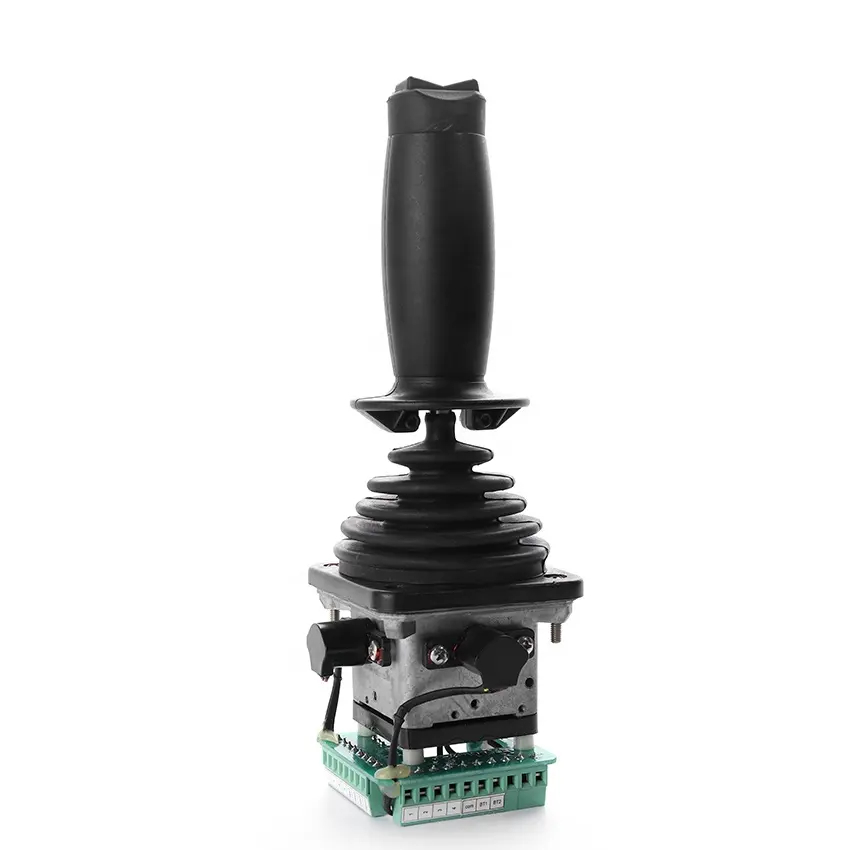

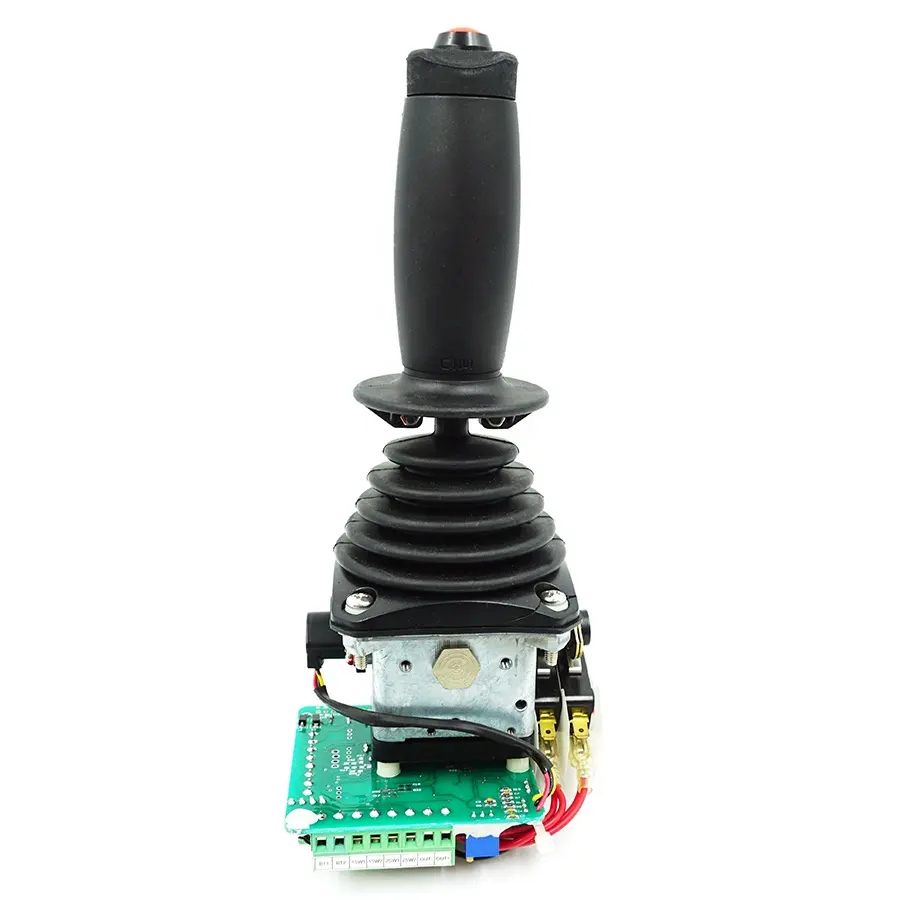

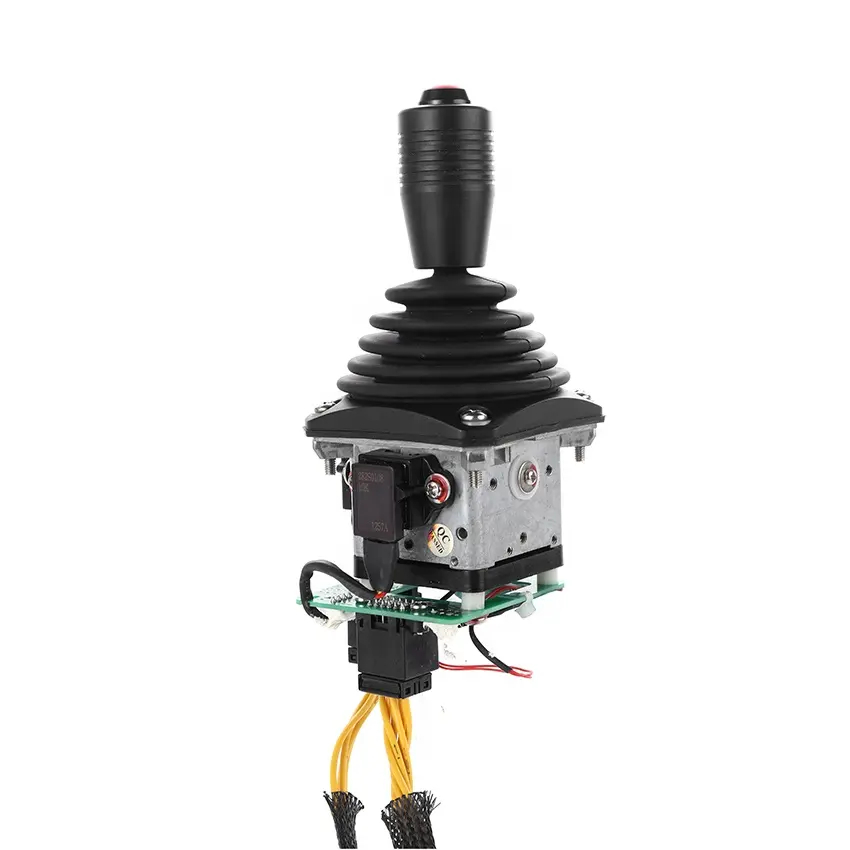

Multi-axis hand operated joystick
Product Features
● Spring return,single-axis or dual-axis operated
● Cross direction or arbitrary direction operated optional
● Potentiometer or hall effect angle detection,long life
● Large current microswitch optional (10A@30Vdc)
● Various output option
Application
Typical application on rotary drilling rigs, aerial fire trucks, Cranes shield machine and other electrical and electro-hydraulic control system.

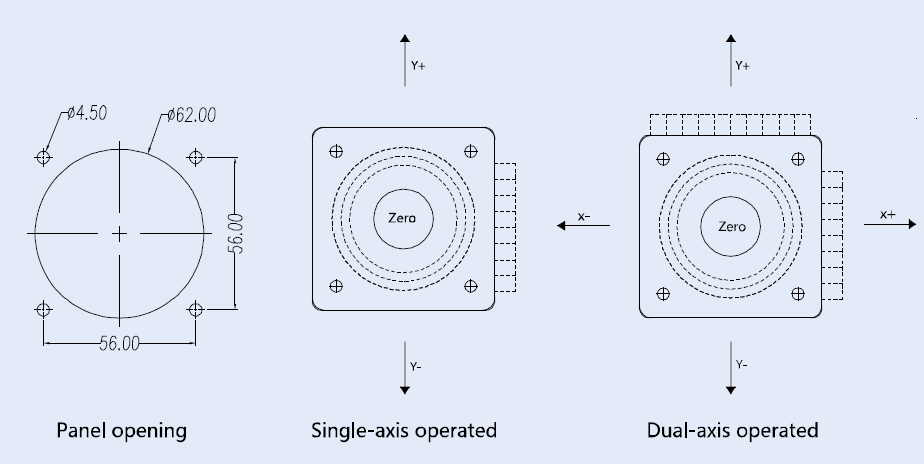

| Travel angle | ±25° |
| Operating type | Spring return |
| Breakout force | 5N |
| Operating force (max) | 30N |
| Maximum allowable force | >300N |
| Expecting life | >2million cycles (Potentiometer) >5 million cycles (Hall effect) |
| Weight | 460g (Without handle) |
| Potentiometer | |
| Power supply | < 36Vdc |
| Resistance | 5KΩor 10KΩ (±10%) |
| Center angle | ±3º |
| Power dissipation | 0.2W |
| Hall effect | |
| Power supply | 5.0±0.5Vdc |
| Supply current | <11mA (Single axis),<22mA (Dual-axis) |
| Maximum allowable overload voltage | 20Vdc |
| Reverse maximum allowable voltage | -10Vdc |
| Output linearity tolerance | <±0.2V |
| With electronic amplifier | |
| Power supply | 18～36Vdc (U21～U24) |
| 9～36Vdc (I21~I22) | |
| Power current consumption | <20mA |
| Output current (max) | 10mA (With standard voltage output) |
| Micro switch | |
| Load capacity | 10A@30Vdc (Resistive load) |
| Expecting life | >30 million cycles (Mechanical) |
| >200 thousand cycles (Electrical) | |
| Insulation resistance | >100MΩ (500Vdc Insulating-resistance meter) |
| Breakout angle | ±3°~±5° |
| Operating Temperature | -30℃～+70℃ |
| Storage Temperature | -40℃～+85℃ |
| Protection level | IP54 (Above the flange) |
| type | SJ30 - □□ - □□ - □□ - □□ - □□ |
| Code | ① - ② - ③ - ④ - ⑤ - ⑥ |
| 1A | Spring return, single-axis directional operated |
| 2AP | Spring return, dual-axis cross directional operated |
| 2AC | Spring return, dual-axis arbitrary directional operated |
3. Output signal

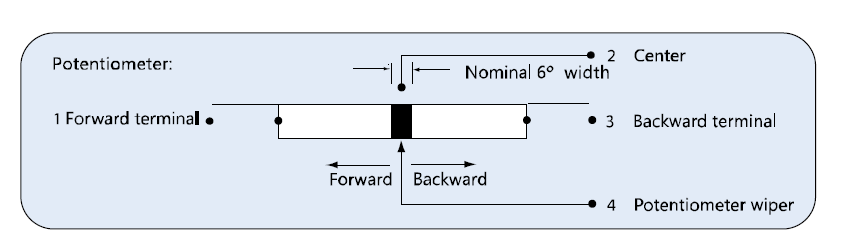

| P051 | Potentiometer, less than 36Vdc power supply, with 5KΩ center-tapped potentiometer |
| P101 | Potentiometer, less than 36Vdc power supply, with 10KΩ center-tapped potentiometer |
| H51 | Hall effect,5Vdcpower supply, 0.5~2.5~4.5V output voltage |
| H52 | Hall effect,5Vdcpower supply, 0~2.5~5.0V output voltage |
| H53 | Hall effect,5Vdc power supply, 1.25~2.5~3.75V output voltage |
| U21 | With electronic amplifier,18-36Vdc power supply,-10V-0V-+10V output voltage |
| U22 | With electronic amplifier,18-36Vdc power supply,+10V-0V-+10V output voltage |
| U23 | With electronic amplifier,18-36Vdc power supply,-5V-0V-+5V output voltage |
| U24 | With electronic amplifier,18-36Vdc power supply,+5V-0V-+5V output voltage |
| I21 | With electronic amplifier,9-36Vdc power supply, 2-wire system 4mA~12mA~20mA output current |
| I22 | With electronic amplifier,9-36Vdc power supply, 2-wire system 20mA~4mA~20mA output current |
| NA | Without analog output |
4. Microswitch
| MS00 | Without microswitch |
| MS22 | With 10A forward and backward directional microswitch |
| MS23 | With 10A center(N.C.) and forward and backward directional microswitch |

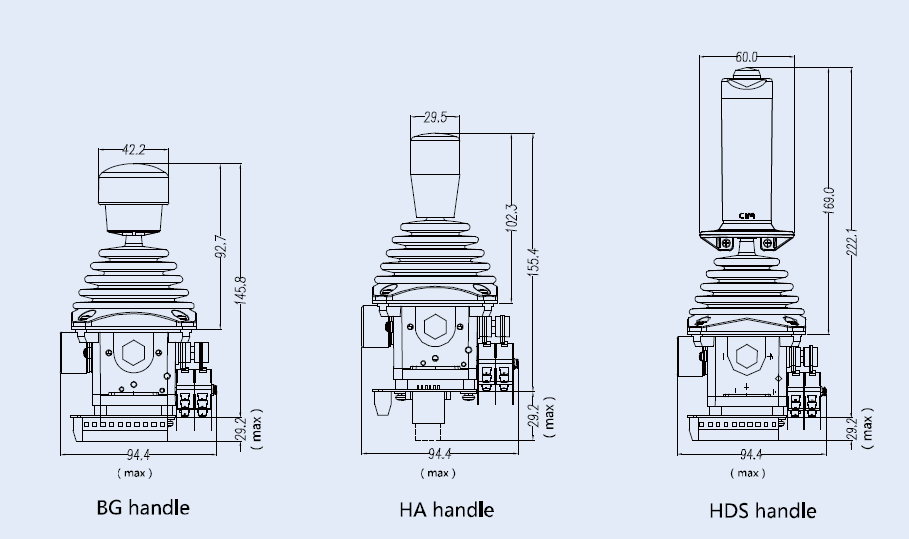

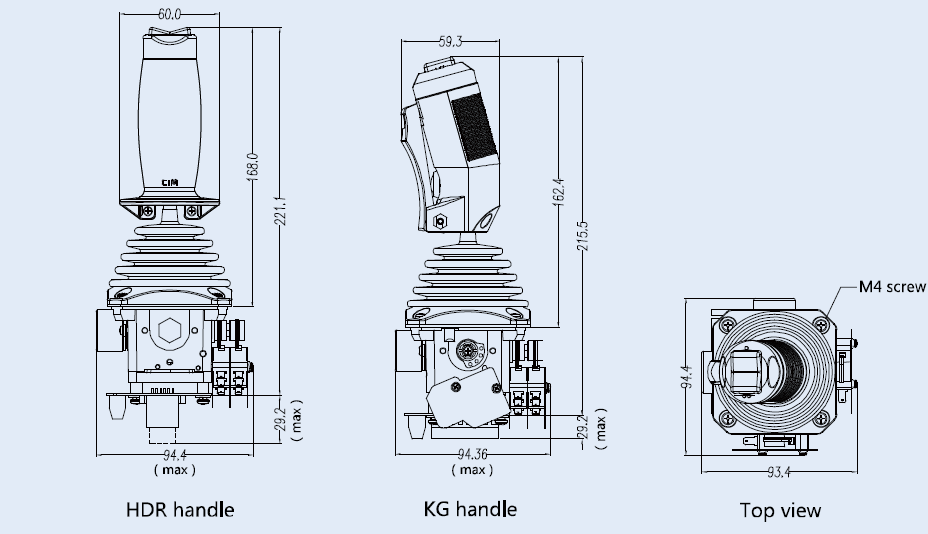

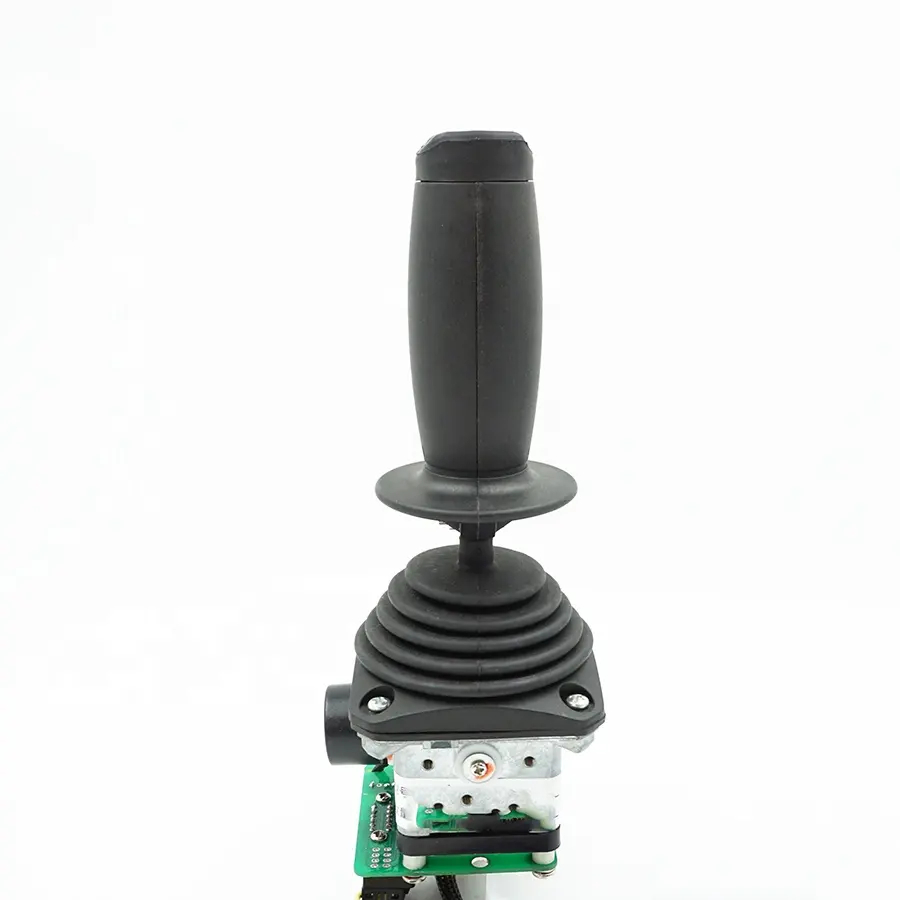

5. Handle
| BG | BG type handle，handle operate |
| HA | HA type handle, top without button |
| HAS | HAS type handle, top with button |
| HD | HD type handle, top without button |
| HDS | HDS type handle, top with button |
| HDR | HDR type handle, top with rocker switch |
| HGDR | KG type handle, with deadman switch and rocker switch |
| HGDN | KG type handle, with deadman switch, without rocker switch |

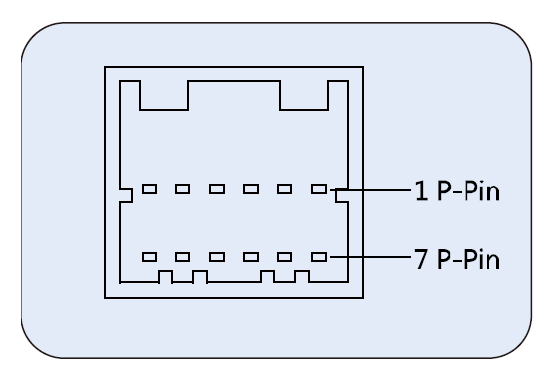

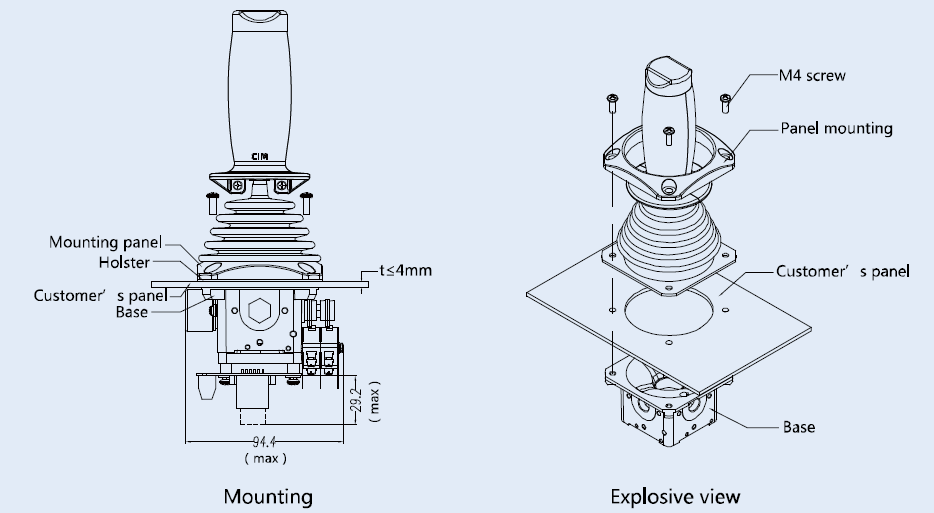

6. Connection
| A | AMP connector |
| C | connector |

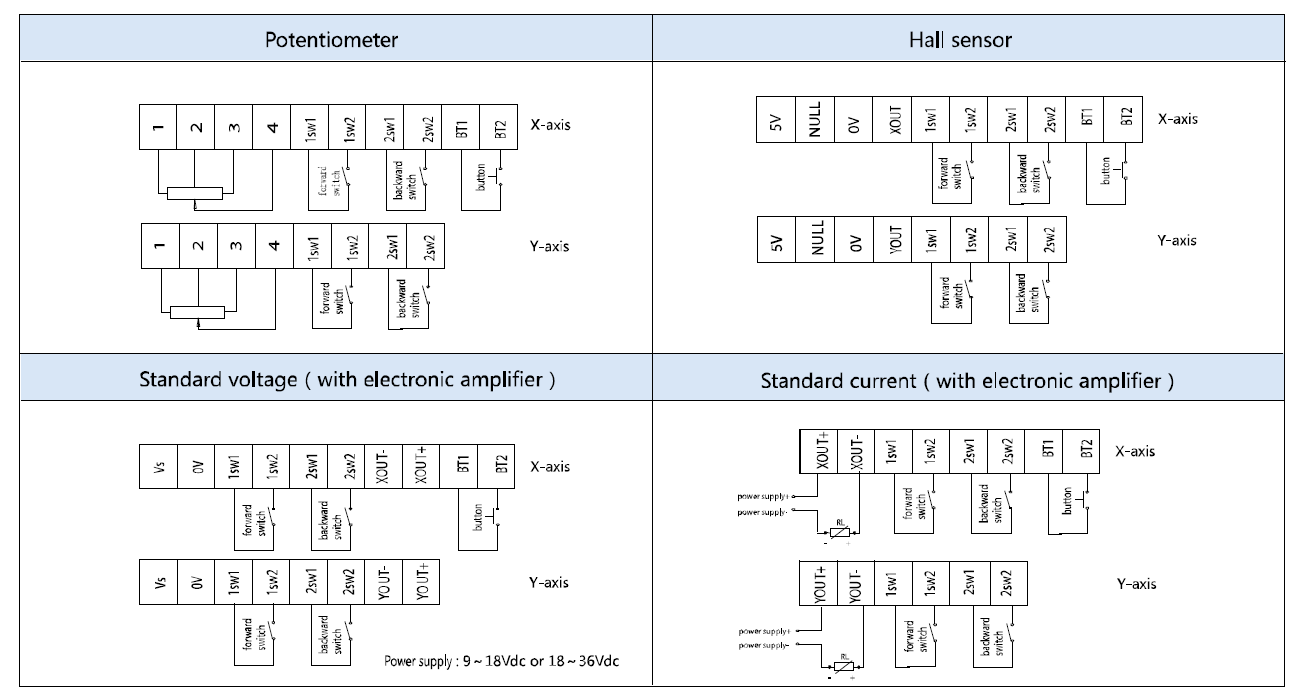

| Pin | Potentiometer | Hall effect |
| 1 | Potentiometer forward terminal | +5V |
| 2 | Potentiometer center tap | N/A |
| Single direction(N/A) | ||
| 3 | Potentiometer backward terminal | 0V |
| 4 | Potentiometer wiper | Output |
| 5 | Directional switch forward (N.O.) | Directional switch forward (N.O.) |
| Start position switch of single direction (N.O.) | Start position switch of single direction (N.O.) | |
| 6 | Forward directional switch common terminal | Forward directional switch common terminal |
| Common terminal of start position | Common terminal of start position | |
| 7 | Backward directional switch (N.O.) | Backward directional switch (N.O.) |
| Single direction (N/A) | Single direction (N/A) | |
| 8 | Backward directional common terminal | Backward directional common terminal |
| Single direction (N/A) | Single direction (N/A) | |
| 9 | Rocker left directional (N.O.) | Rocker left directional (N.O.) |
| 10 | Handle of top switch common terminal | Handle of top switch common terminal |
| 11 | Rocker right directional (N.O.) | Rocker right directional (N.O.) |
| 12 | Deadman switch | Deadman switch |
