Product Features
● Modular design.
● Single and double-axis friction positioning with self-locking in the middle position.
● Pure silver contacts to ensure product lifespan.
● Rated current up to 380V 10A for reliable performance.
● Lifespan exceeding 5 million cycles.
● Installation board meets the IP64 protection level or higher.
Application

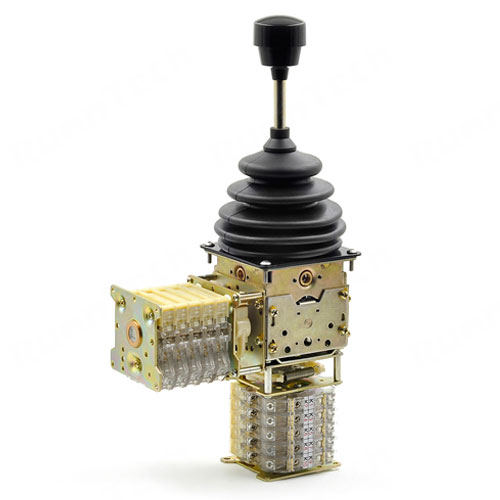

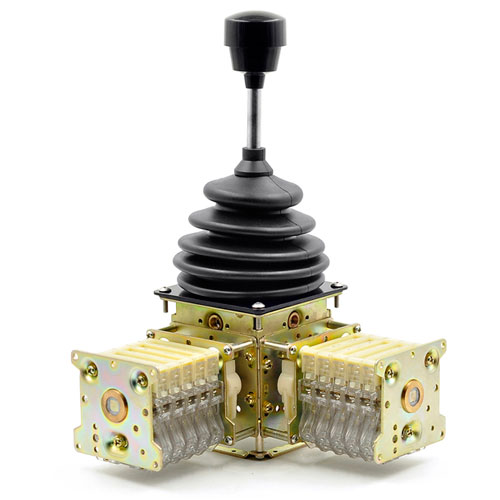

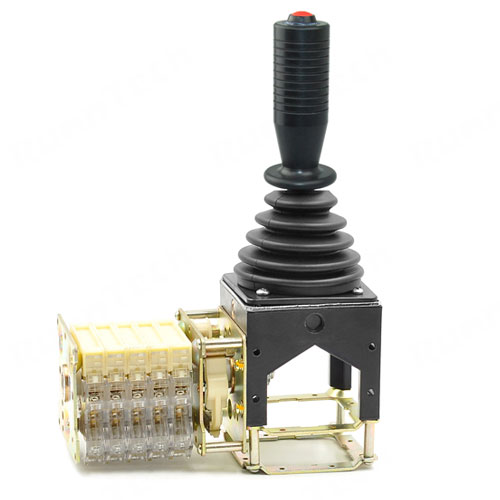

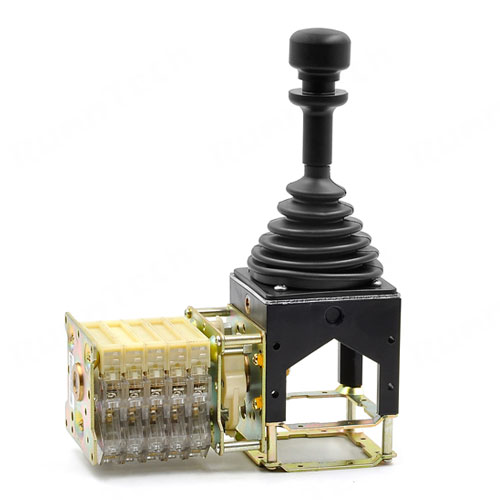

The SJ300 series industrial joystick is primarily used in AC voltage circuits of 50Hz and 60Hz with a voltage of 380V, as well as in DC voltage circuits up to 220V. It is designed for controlling motor starting, speed regulation, direction changing, and braking in crane transportation mechanisms and electrical control equipment. This product is mainly applied in environments such as seaports, docks, coal mines, or outdoor operations.
Storage temperature | -50℃～+80℃ |
| Operating temperature | -25℃～+80℃ |
| Protection grade | IP64 |
Mechanical angle | Potentiometer:±32° , Hall: ±20° |
Operating torque | 5N (50Nmax) |
Mechanical life | 5 million |
Mechanical error | ±0.5° |
Power supply voltage | 220V/380V |
| Power consumption of current | 10 A |
HuiRen Electronic is proud to be one of the leader of condustive plastic potentiometer , Industrial joystick.
